APEX Bulb Rivet LF Alu 7.7x27.7 w/washer
| PART NO. | DESCRIPTION | UNIT | PRICE | IN STOCK | QUANTITY |
|---|---|---|---|---|---|
| 6605-9-6W | APEX BULB RIVET LARGE FLANGE ALUMINIUM 7.7X27.7MM 6605-9-6W 1000 PACK | 1,000 | $1,920.00 | Login to view stock | |
| 6605-9-6W-HP | APEX BULB RIVET LARGE FLANGE ALUMINIUM 7.7X27.7MM 6605-9-6W-HP 100 PACK | 1,000 | $192.00 | Login to view stock |
BULB RIVET ALU/ALU LARGE FLANGE
7.7x 27.7 mm with EPDM washer
ADVANTAGES OF THE BULB / BULB-TITE RIVET
- Powerful - very high shear strength 6,650 N
- Weather Resistance - EPDM washer prevents dirt and damp from penetrating the application
- Excellent Clamping Force - the 3 large pressure plates evenly distributes clamp force (on the blind side), which allows soft or thin materials to be joined without damage.
INSTALLING / SETTING BULB / BULB-TITE RIVETS
To install Bulb / Bulb tite rivets you need a rivet tool with a special Gesipa Bulb-tite nosepiece. A Bulb tite nosepiece is specially designed to lock the mandrel into the sealing part on the setting head side.

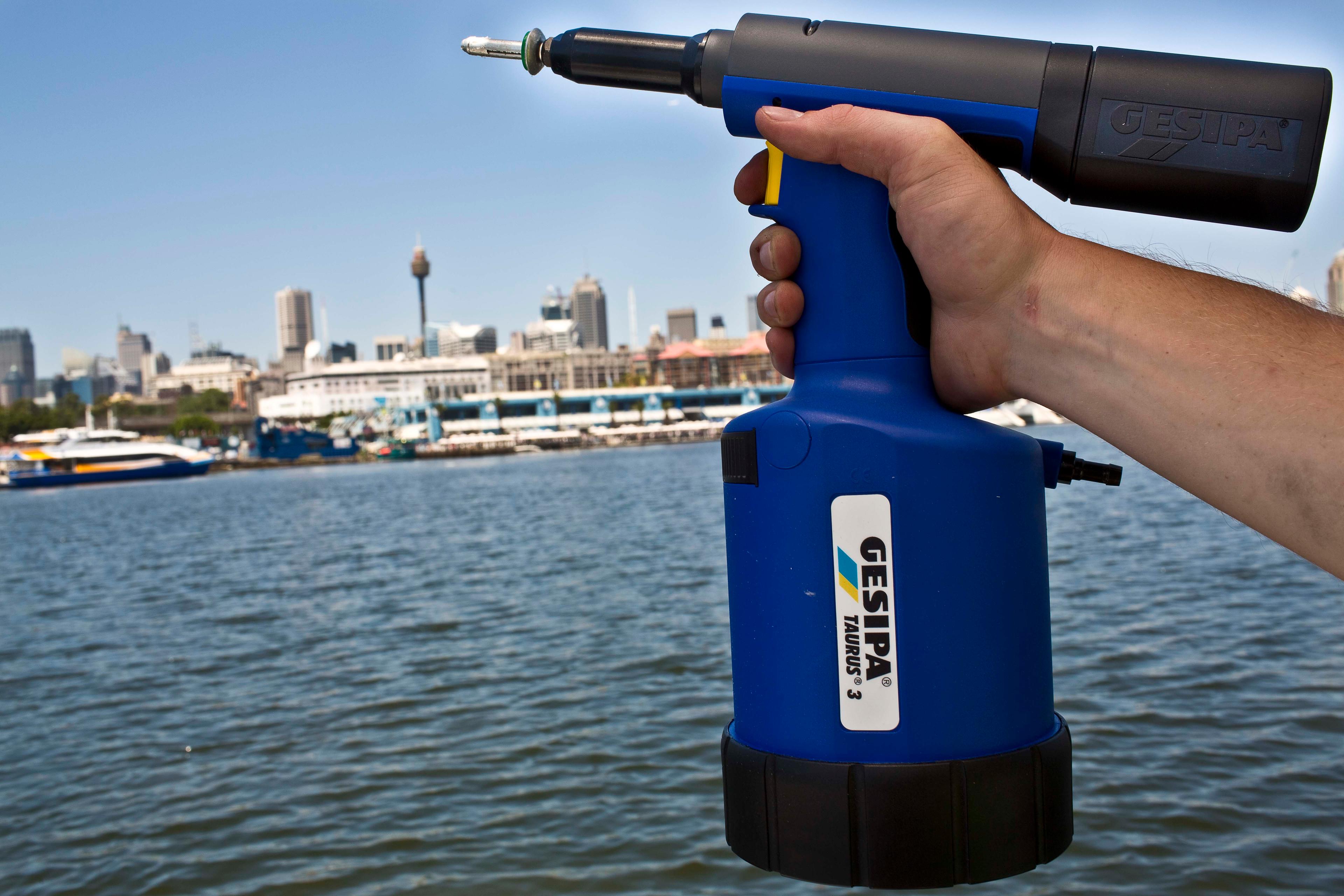

For smaller projects we recommend the HN2-BT Hand Rivet Tool. Though, if you are installing thousands of Bulb-Tite rivets on a larger application or project we recommend the battery powered Gesipa Powerbird Pro Gold (part no. 1679667-BT) or pneumatic operated Taurus 3, as these tools will allow faster and more efficient rivet installation.
Battery Operated
Pneumatic (Air) Operated
Hand Operated
Technical Specifications:
- Rivet Body Dia: 7.7 mm
- Rivet Length: 27.7 mm
- Material: Aluminum
All Your Questions
What safety precautions should be taken when using a circular saw?
When using a circular saw, several safety precautions should be followed:
•Wear appropriate personal protective equipment, including safety glasses and hearing protection.
•Ensure the saw's blade guard is in place and functional.
•Keep your hands away from the blade's path and use a push stick when cutting small pieces.
•Secure your workpiece properly to prevent kickback.
•Maintain a stable stance and a good grip on the saw.
•Avoid distractions and maintain focus while operating the tool.
What is toolfix?
Tool Fix is the fixing mechanism where tool is fixed by tool.
What is a rotary hammer drill used for?
A rotary hammer drill is a power tool primarily used for drilling into tough materials like concrete, stone, or masonry. It combines the action of a regular drill with a hammering motion, allowing it to break through hard surfaces more effectively. It's commonly used in construction and renovation projects.
How does a cordless impact driver differ from a regular cordless drill?
A cordless impact driver is a power tool designed for driving screws and fasteners more efficiently. It delivers high torque in quick bursts, which helps to drive screws with less effort and prevent cam-out (slippage). Unlike a regular cordless drill, an impact driver doesn't have a traditional chuck that holds the bit, but instead uses a hex collet that accepts hex-shanked bits.
How does a torque wrench work?
A torque wrench is a tool designed to apply a specific amount of torque (rotational force) to a fastener, such as a nut or bolt. It typically has a handle and a mechanism that allows you to set a desired torque value. When you apply force to the handle, the wrench clicks or releases when the set torque is reached, ensuring that the fastener is tightened to the correct specifications.
