Apex Rivet Nut Steel TH Z Body M5
| PART NO. | DESCRIPTION | UNIT | PRICE | IN STOCK | QUANTITY |
|---|---|---|---|---|---|
| NSTM5Z | Apex Rivet Nut Steel TH Z Body M5 | 1,000 | $300.00 | Login to view stock |
Apex Rivet Nut Steel TH Z Body M5
PRICE
Price is PER 1000 PCS
ORDERING GUIDE
To order quantities less then 1000 PCS - please put a decimal point in front of the Number. E.g 0.1 for 100 Pieces
100 PCS: Enter '0.1' in QTY section
200 PCS: Enter '0.2' in QTY section
500 PCS: Enter '0.5' in QTY section
1000 PCS: Enter '1' in QTY section
1500 PCS: Enter '1.5' in QTY section
PACKAGING

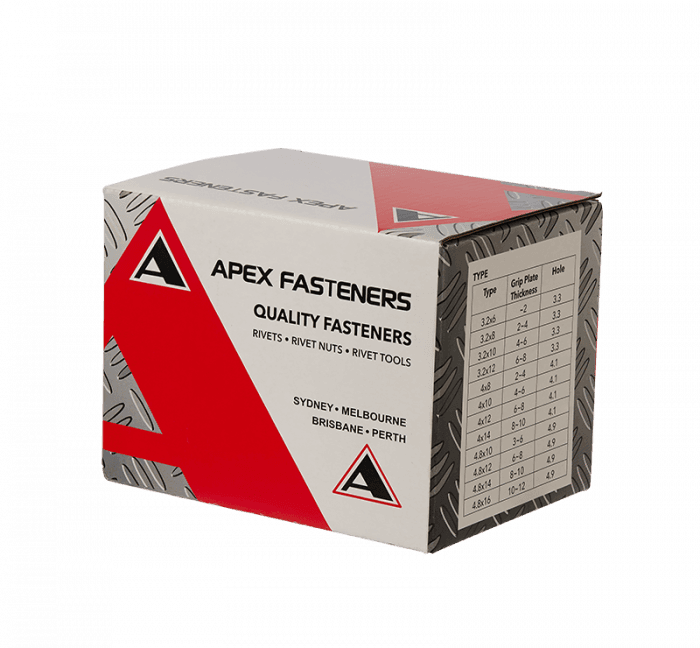

All Apex Rivet Nuts are packaged in bags of 100 pieces.
|
Technical Specifications |
|
|
Stock Code |
NSTM5Z |
|
Material |
Steel |
|
Body |
Non - Ribbed |
|
Head Type |
Thin Head |
|
Thread |
M5 x 0.80 |
|
Diameter |
7.2 mm |
|
Length |
12.0 mm |
|
Grip Range |
0.5 – 2.5 mm |
|
Hole Size |
7.1 mm |
|
Shear Strength (Push Out) |
2,200 N (224 Kgf) |
|
Thread breaking force (Pull Out) |
11,500 N (1172 Kgf) |
|
Tightening Torque |
8.0 Nm |
All Your Questions
What safety precautions should be taken when using a circular saw?
When using a circular saw, several safety precautions should be followed:
•Wear appropriate personal protective equipment, including safety glasses and hearing protection.
•Ensure the saw's blade guard is in place and functional.
•Keep your hands away from the blade's path and use a push stick when cutting small pieces.
•Secure your workpiece properly to prevent kickback.
•Maintain a stable stance and a good grip on the saw.
•Avoid distractions and maintain focus while operating the tool.
What is toolfix?
Tool Fix is the fixing mechanism where tool is fixed by tool.
What is a rotary hammer drill used for?
A rotary hammer drill is a power tool primarily used for drilling into tough materials like concrete, stone, or masonry. It combines the action of a regular drill with a hammering motion, allowing it to break through hard surfaces more effectively. It's commonly used in construction and renovation projects.
How does a cordless impact driver differ from a regular cordless drill?
A cordless impact driver is a power tool designed for driving screws and fasteners more efficiently. It delivers high torque in quick bursts, which helps to drive screws with less effort and prevent cam-out (slippage). Unlike a regular cordless drill, an impact driver doesn't have a traditional chuck that holds the bit, but instead uses a hex collet that accepts hex-shanked bits.
How does a torque wrench work?
A torque wrench is a tool designed to apply a specific amount of torque (rotational force) to a fastener, such as a nut or bolt. It typically has a handle and a mechanism that allows you to set a desired torque value. When you apply force to the handle, the wrench clicks or releases when the set torque is reached, ensuring that the fastener is tightened to the correct specifications.
