Apex Rivet Nut Steel LF Z Body M5 X-Grip
| PART NO. | DESCRIPTION | UNIT | PRICE | IN STOCK | QUANTITY |
|---|---|---|---|---|---|
| NSLM5XZ | Apex Rivet Nut Steel LF Z Body M5 X-Grip | 1,000 | $354.60 | Login to view stock |
Note: This order will be placed as a back order
Apex Rivet Nut Steel LF Z Body M5 X-Grip
PRICE
Price is PER 1000 PCS
ORDERING GUIDE
To order quantities less then 1000 PCS - please put a decimal point in front of the Number. E.g 0.1 for 100 Pieces
100 PCS: Enter '0.1' in QTY section
200 PCS: Enter '0.2' in QTY section
500 PCS: Enter '0.5' in QTY section
1000 PCS: Enter '1' in QTY section
1500 PCS: Enter '1.5' in QTY section
PACKAGING
All Apex Rivet Nuts are packaged in bags of 100 pieces.
|
Technical Specifications |
|
|
Stock Code |
NSLM5XZ |
|
Material |
Steel |
|
Body |
Non – Ribbed |
|
Head Type |
Large Flange |
|
Thread |
M5 x 0.80 |
|
Diameter |
7.5 mm |
|
Length |
15.3 mm |
|

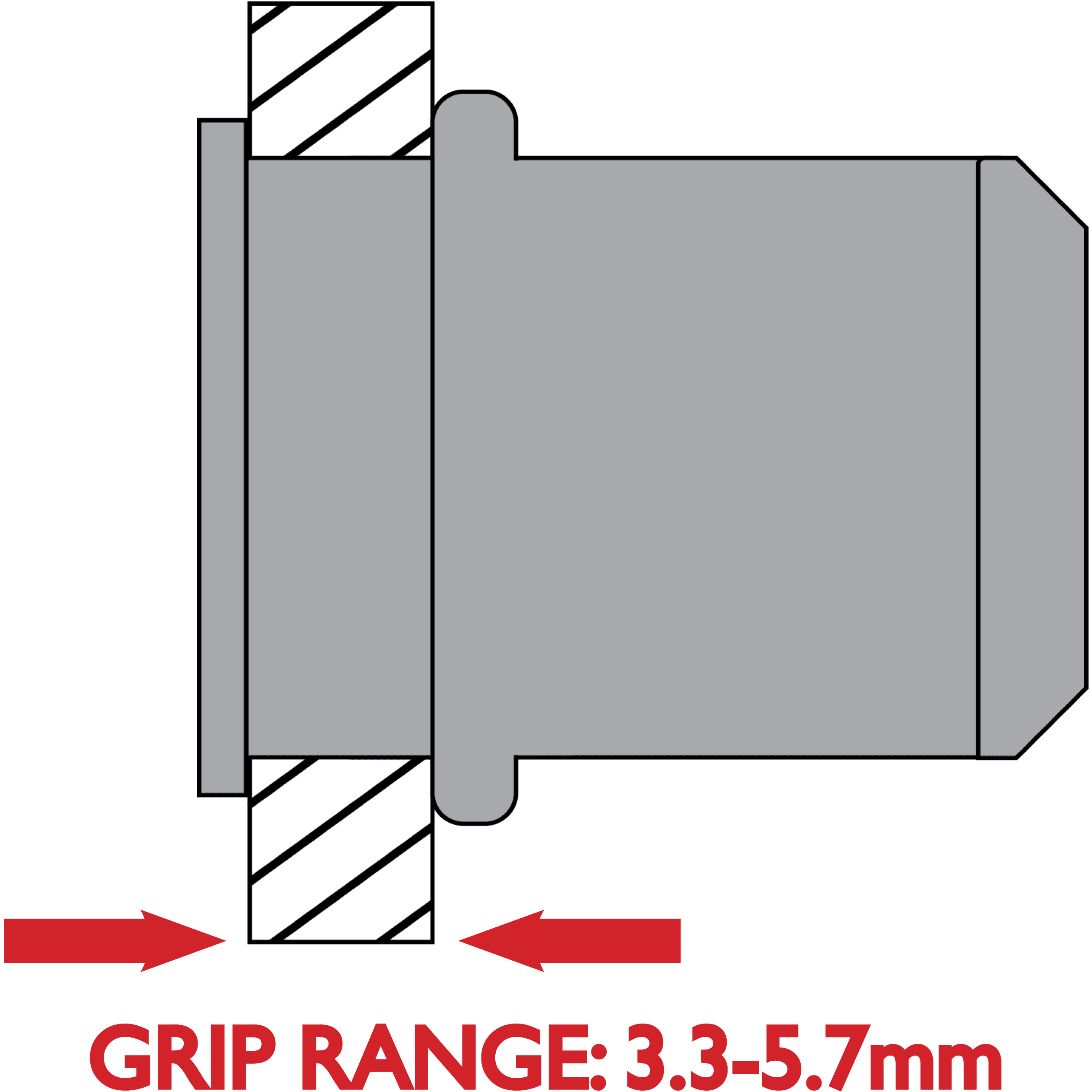

Grip Range |
3.3 - 5.7 mm |
|
Hole Size |
7.1 mm |
|
Shear Strength (Push Out) |
2,200 N (224 Kgf) |
|
Thread breaking force (Pull Out) |
11,500 N (1172 Kgf) |
|
Tightening Torque |
8.0 Nm |
