Apex Rivet Nut Aluminium LF M5 X-Grip
| PART NO. | DESCRIPTION | UNIT | PRICE | IN STOCK | QUANTITY |
|---|---|---|---|---|---|
| NALM5X | Apex Rivet Nut Aluminium LF M5 X-Grip | 1,000 | $383.20 | Login to view stock |
Apex Rivet Nut Aluminium LF M5 X-Grip
PRICE
Price is PER 1000 PCS
ORDERING GUIDE
To order quantities less then 1000 PCS - please put a decimal point in front of the Number. E.g 0.1 for 100 Pieces
100 PCS: Enter '0.1' in QTY section
200 PCS: Enter '0.2' in QTY section
500 PCS: Enter '0.5' in QTY section
1000 PCS: Enter '1' in QTY section
1500 PCS: Enter '1.5' in QTY section
PACKAGING

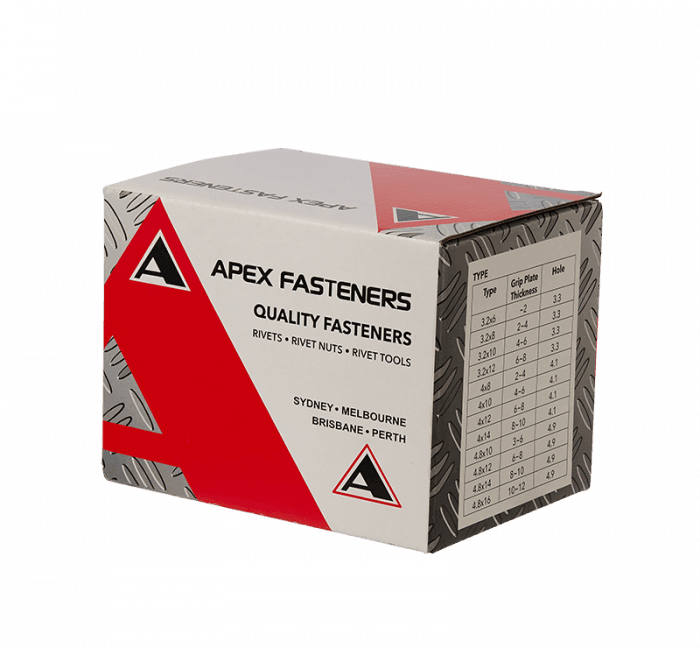

All Apex Rivet Nuts are packaged in bags of 100 pieces.
|
Technical Specifications |
|
|
Stock Code |
NALM5X |
|
Material |
Aluminium |
|
Body |
Non - Ribbed |
|
Head Type |
Large Flange |
|
Thread |
M5 x 0.80 |
|
Diameter |
7.0 mm |
|
Length |
13 mm |
|

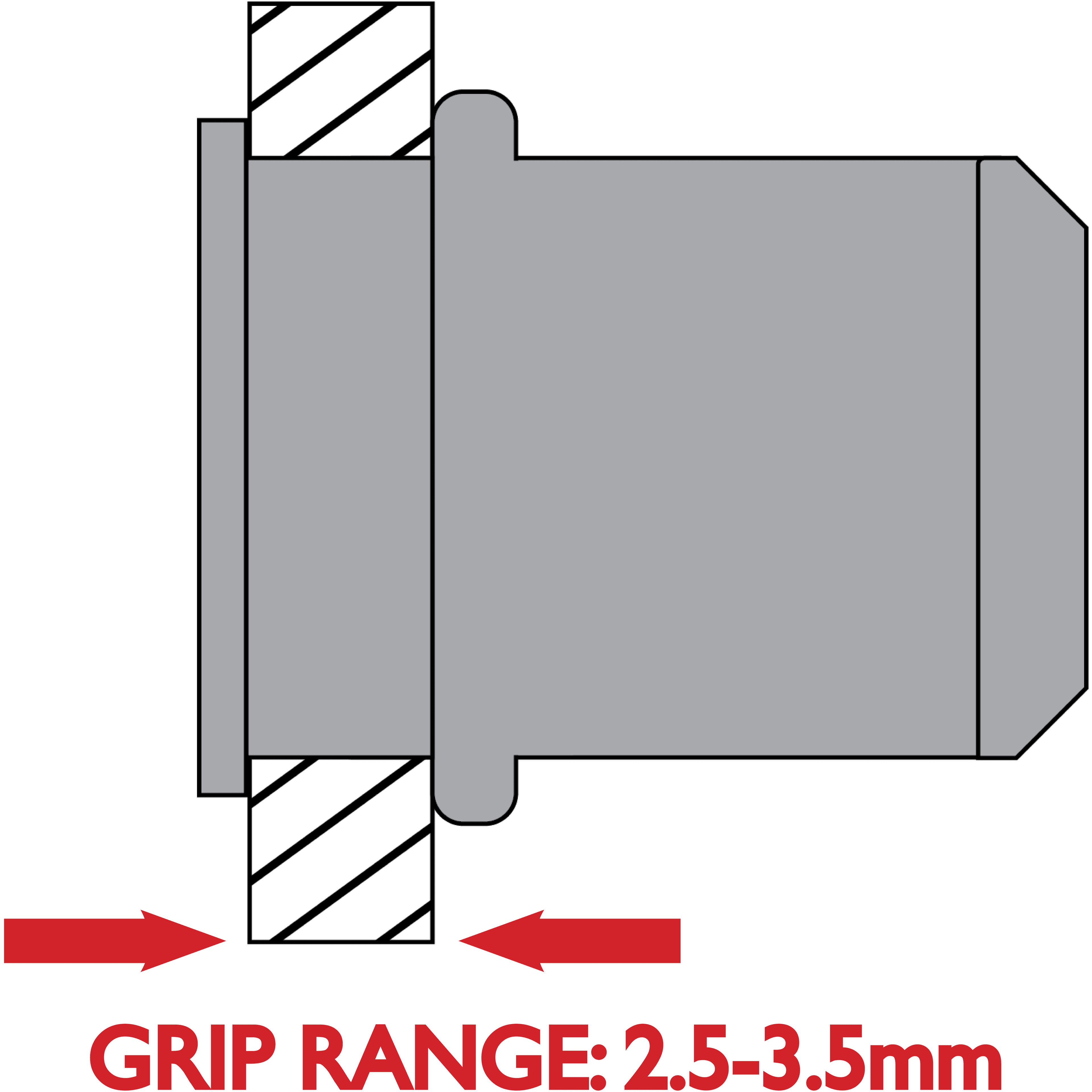

Grip Range |
2.5 - 3.5 mm |
|
Hole Size |
7.1 mm |
|
Shear Strength (Push Out) |
1,400 N (143 Kgf) |
|
Thread breaking force (Pull Out) |
5,700 N (581 Kgf) |
|
Tightening Torque |
5.0 Nm |
